Compare Prices

Phase Kwh Meter

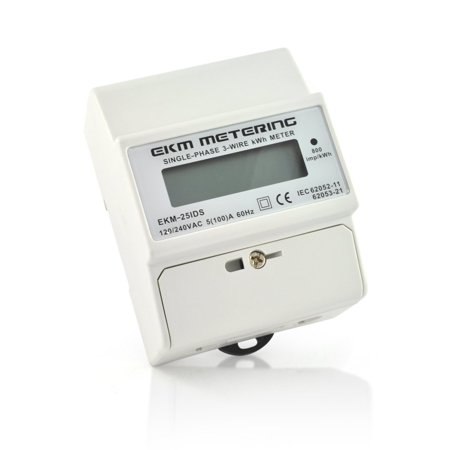

Phase Meter Kwh - Electric kWh Meter, 100A 120/240 Volt, 3-Wire, 60Hz
Electric kWh Meter, 100A 120/240 Volt, 3-Wire, 60Hz

Voltage: 120/240 volts 3-Wire Amperage: up to 100 amps Type: Pass-Through, Single-Phase, 60Hz Data: Pulse Output - 800 pulses per kWh Model: EKM-25IDS This is a very popular product if you are metering your North American household power and you want a simple read-off-the-face kWh meter. State-of-the-art, fully solid-state kWh meter with 800 pulse per kWh pulse output 1% accuracy class, LCD readout in hundredths of a kWh, to 99999.99 kWh. No conversion factor or multiplier. Basic single phase 120/240V 3-wire, 100A version, Neutral bypasses the meter. PLEASE NOTE: No external current transformers are needed with this meter. The CTs are inside the meter already. Wires pass through the body of the meter and through the internal current transformers. Do NOT buy additional current transformers with this meter, even if Amazon says that they are frequently bought together. Compact, very easy to install design. Simple DIN-rail mounting. Wires pass through 3/8+" diameter tubes in the meter body--Will accept #3AWG insulated wire. The only electrical connection is made by 2 small screws which penetrate the wire insulation and pick up power--less than 1 watt--to power the meter. Non-resettable LCD display. Usage data is maintained through power outages. Single-phase energy meter, 100A 120/24...

  • Brand: EKM Metering Inc.
  • ASIN: B00GMZRXE8
  • UPC: 788581421369
  • Part No: EKM-25IDS
Kwh Phase Meter - Baomain DDS238-4 20(100) Single Phase DIN-rail Type Kilowatt Hour kwh Meter 220V 60Hz 20(100)A 1pcs
Baomain DDS238-4 20(100) Single Phase DIN-rail Type Kilowatt Hour kwh Meter 220V 60Hz 20(100)A 1pcs

When power line input through the L1 and L2/N, please screw down to penetrate the insulating layer of the power lines. It's easy to handle it.

  • Color: White
  • Brand: Baomain
  • ASIN: B01AN9AQ24
  • UPC: 711811447105
  • Part No: DDS238-4
Meter Kwh Phase - Baomain DDS238-4 (30-100)Single Phase DIN-rail Kilowatt Hour kwh Meter 220V 100A
Baomain DDS238-4 (30-100)Single Phase DIN-rail Kilowatt Hour kwh Meter 220V 100A

220V Single Phase DIN-rail Kilowatt Hour kwh Meter It's brand new, good quality & high performance Rate Voltage:220V 230V 240V Rate Current:30(100A) Accuracy Class:Class 1 Starting Current:0.4%lb Insulation Performance:AC voltage 2KV for 1 minute,impulse voltage 6KV 33mm standard DIN rail installation,complying with standard DIN EN5002 May select step motor type impulse register 99999.9kwh Standard configuration one port of pulse output passive(polarity)

  • Brand: Baomain
  • ASIN: B01FAVCHV8
  • UPC: 711811448539
  • Part No: DDS238-4
Kwh Meter Phase - Baomain Single Phase DIN-rail Type Kilowatt Hour kwh Meter 220V 60Hz 20 (100)A
Baomain Single Phase DIN-rail Type Kilowatt Hour kwh Meter 220V 60Hz 20 (100)A

220V 60Hz Single Phase DIN-rail Kilowatt Hour kwh Meter It's brand new, good quality & high performance Rate Voltage:220V 60Hz Rate Current:20(100A) Accuracy Class:Class 1 Starting Current:0.4%lb Insulation Performance:AC voltage 2KV for 1 minute,impulse voltage 6KV 33mm standard DIN rail installation May select step motor type impulse register 99999.9kwh Standard configuration"Power LED" indication and "impulse LED" indication.

  • Color: White
  • Brand: Baomain
  • ASIN: B00A4VF7U8
  • UPC: 508731576608
  • Part No: DDS238-4 20(100)

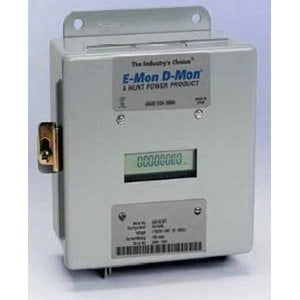

Phase Meter Kwh - E-Mon D-Mon 208200 Kit Class 2000 3-Phase KWH Meter, 200A, 120/208-240V, 3 or 4 Wire
E-Mon D-Mon 208200 Kit Class 2000 3-Phase KWH Meter, 200A, 120/208-240V, 3 or 4 Wire

The E-MON D-MON KWH Meter is a fully electronic, low cost three-phase KWH meter for monitoring energy consumption. The E-MON D-MON installs easily in minutes without power interruption and can monitor energy consumption from a single circuit to an entire building. Applications include office buildings, malls, hospitals, restaurants, or anywhere three phase electricity is used. Easy to read 8-digit LCD Display Direct reading for all amperages without multiplier Displays accumulative KWH and "Real-Time" KW Load 0-2 Volt output split-core current sensors allow for safe and accurate remote mounting of current sensors up to 2,000 feet from meter without power interruption (Optional solid-core sensors available) Parallel up to three (3) sets of current sensors for cumulative reading Meter can be used on the following configurations: 3 PHASE, 4 WIRE 3 PHASE, 3 WIRE 2 PHASE, 3 WIRE Please call for other voltages and configurations Enclosure Industrial Grade JIC steel box for indoor installation 1 1/16" KO (3/4" Cond.) on bottom of enclosure 7/8" KO (1/2" Cond.) on top of enclosure Available as stand-alone units or installed in MMU (Multiple Meter Unit) cabinets Padlocking hasp & mounting flanges Utility Grade Metering Accuracy Non-volatile Memory UL Listed/CSA Certified Certified to...

  • ASIN: B005GWR9Y2
Kwh Meter Phase - DAE DDM730 120/240V kWh Meter, 100 Amp, 1P3W (2 hot wires), Internal CT, 60 Hz, Pass Through
DAE DDM730 120/240V kWh Meter, 100 Amp, 1P3W (2 hot wires), Internal CT, 60 Hz, Pass Through

DAE DDM730 120/240V kWh Meter, 100 Amp, Internal CT, hot wire pass through, 1 Phase 3 wire (2 hot wire and 1 neutral), 60Hz or 50HzPulse output: 800 pulses per kWhIf the hot wire diameter which passes through the meter is under 0.2 inch, please insert the wire into the tubes (attached with the meter) first and then passes through the meter. If the hot wire diameter is more than 0.2 inch, please pass the wire through the meter directly without using the tubes. The hole diameter on the meter is 0.45 inch. The wire size equal to or less than AWG 4 (0.37 inch dia, including insulation) will work.The dimension is 88 mm long, 75 mm wide and 73 mm height.Easy to install. The only electrical connections are made by 2 small tap screws which penetrate the wire insulation and pick up the voltage reference and power the meter.1% accuracy, No conversion factor or multiplier needed.LCD Display, 99999.9 kWh.DIN-rail mount, 1.33mm standard DIN rail installation, complying with standard DIN EN5002.With"Power LED" indication and "Impulse LED" indication.Watertight, weatherproof enclosures available.Insulation Performance: AC voltage 2KV for 1 minute, impulse voltage 6KVThere are many advantages to this pass-through design. There is increased safety and reliability. The meter circuitry does not car...

  • Color: grey
  • Brand: DAE
  • ASIN: B07CZ4D5KV
  • UPC: 730707518873
  • Part No: DDM730
Kwh Phase Meter - Baomain DDS238-4-R DIN-rail Single Phase Three Wire Energy Meter 110V 220V 60Hz 10 (100) A
Baomain DDS238-4-R DIN-rail Single Phase Three Wire Energy Meter 110V 220V 60Hz 10 (100) A

Din rail single phase electronic meter is the most advanced type electronic kWh meter available at the marker.With the product range we have inroduced a large scale of electronic meters on the market suitable for 110/240V AC 60 Hz.The 1 phase series meter is available with a step type impuise register and adopted the latest micro-electronic techniques.In the meter,we used advanced techniques of digital sampling and SMT ,The meter record total power energy electricity.Power indicator Meter is connected and working OKImpulse indicator Red LED show impulse rate.This meter will not work on a single phase 120v 2-wire system

  • Color: White
  • Brand: Baomain
  • ASIN: B078V3KD46
  • UPC: 711811435317
  • Part No: DDS238-4 20(100)
Kwh Phase Meter - BAYM 5(80)A 120V 60HZ Single Phase Din Rail KWH Watt Hour Din-rail Energy Meter LCD KWH 80A
BAYM 5(80)A 120V 60HZ Single Phase Din Rail KWH Watt Hour Din-rail Energy Meter LCD KWH 80A

5(80)A 120V 60Hz Single phase Two Wire Din rail KWH Watt hour din-rail energy meter LCD KWH 80A BM35SA Application Model BM35SA single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter,it adopt micro-electronics technique,and imported large scale integrate circuit, use advanced technique of digital and SMT techniques,etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21 It can accurate and directly measure 60Hz active energy consumption from single phase AC electricity net. This meter has white backlight source eight digits LCD displays shows the active energy consumption. It has following features:good reliability,small volume,light weight,specious nice appearance, convenient installation,etc. Functions and features 35mm standard DIN- rail installation,complying with standard DIN EN50022. Bipolar width (Modulus 17.5mm),complying with standard DIN43880 Standard configuration 7+1 digits display (9999999.1kWh) by white backlight source LCD.May select 7+1 digits display (999999.1kWh) without backlight source general LCD Standard configuration pulse output passive (polarity),may select distant pulse output passive (...

  • Brand: BAYM
  • ASIN: B01CT432EU
  • UPC: 603149698048
  • Part No: BM35SA

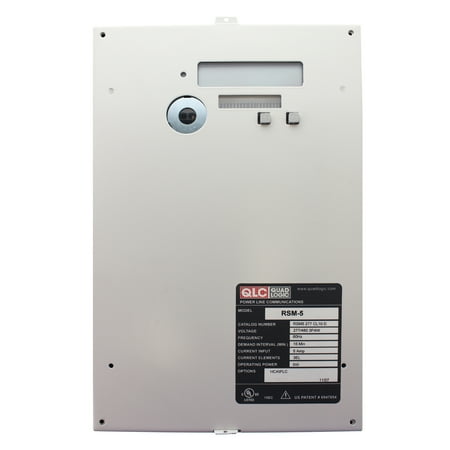

 - Quadlogic RSM5C-2773200-3D 3-Phase kWH Demand Meter, 3200-Amp, 277/480V
Quadlogic RSM5C-2773200-3D 3-Phase kWH Demand Meter, 3200-Amp, 277/480V

Phase Kwh Meter

  • Model: RSM5c-2773200-3D
  • Color: MulticolorMulti
 - E-Mon 208400KIT Class 2000 3 or 4-Wire KWH Meter LCD Display 7 Inch Width x 3.250 Inch Depth x 7.250 Inch Height 120/208/240 Volt 400 Amp 3 Phase
E-Mon 208400KIT Class 2000 3 or 4-Wire KWH Meter LCD Display 7 Inch Width x 3.250 Inch Depth x 7.250 Inch Height 120/208/240 Volt 400 Amp 3 Phase

Phase Kwh Meter

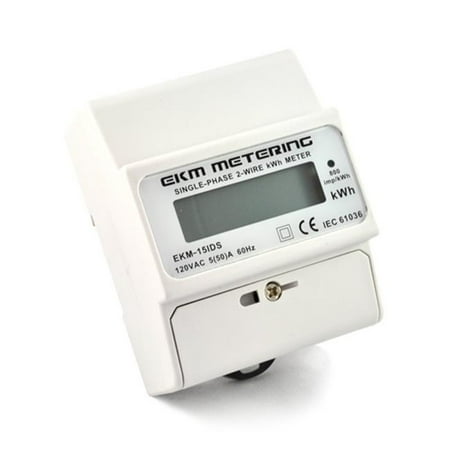

 - EKM Metering 120 Volt Pass-Through kWh Meter, 2-Wire (1 hot, 1 neutral), 50A, 60Hz, EKM-15IDS
EKM Metering 120 Volt Pass-Through kWh Meter, 2-Wire (1 hot, 1 neutral), 50A, 60Hz, EKM-15IDS

Phase Kwh Meter

  • Model: EKM-15IDS #2
  • Color: White

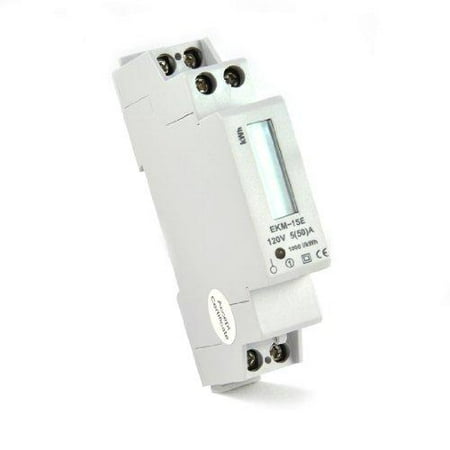

 - kwh electric meter - 120 volt, 2-wire, external 14mm 50a current transformer
kwh electric meter - 120 volt, 2-wire, external 14mm 50a current transformer

Phase Kwh Meter

  • Model: EKM-15E #1
  • Color: White
 - Electric kWh Meter, 100A 120/240 Volt, 3-Wire, 60Hz
Electric kWh Meter, 100A 120/240 Volt, 3-Wire, 60Hz

Phase Kwh Meter

  • Model: EKM-25IDS #3
  • Color: White

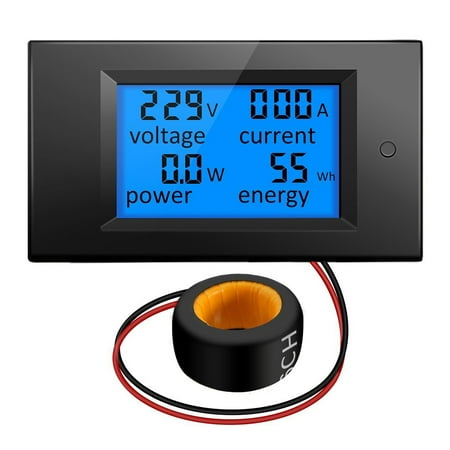

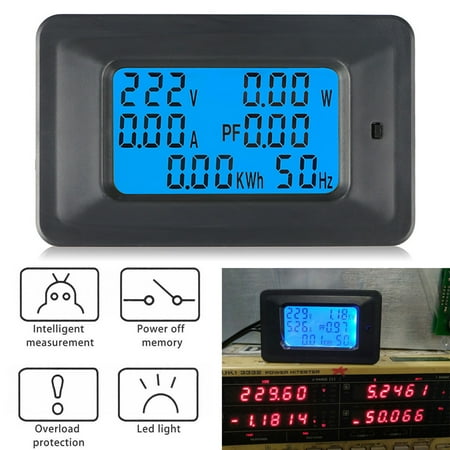

 - 5-pack AC 110-250V 100A LCD Display Digital Panel Current Voltage Power Energy Multimeter KWh Voltmeter Ammeter, with AC Current Transformer CT
5-pack AC 110-250V 100A LCD Display Digital Panel Current Voltage Power Energy Multimeter KWh Voltmeter Ammeter, with AC Current Transformer CT

Phase Kwh Meter

 - Leviton 5B101-T02 kWh Meter Mini Meter Single Element 200A 120V 1PH 2W OEM Module Encapsulated 0.1 kWh Counter Output - Permanently Attached CTs Included
Leviton 5B101-T02 kWh Meter Mini Meter Single Element 200A 120V 1PH 2W OEM Module Encapsulated 0.1 kWh Counter Output - Permanently Attached CTs Included

Phase Kwh Meter

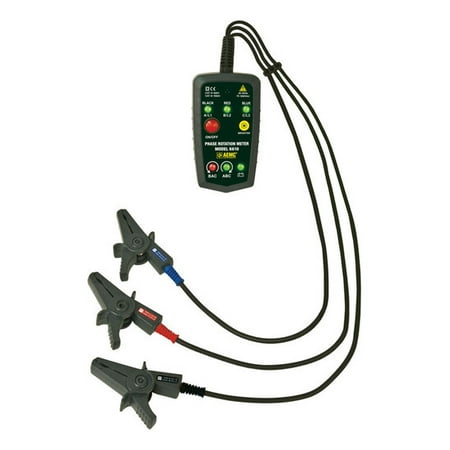

 - AEMC 2121.12 Phase Rotation Meter Model 6610
AEMC 2121.12 Phase Rotation Meter Model 6610

Phase Kwh Meter

  • Model: 6610
  • Color: White

3 PHASE DIGITAL KWH METER CONNECTION

Phase Kwh Meter

In this video we explain three phase digital kwh meter connection.we know kwh meter is used for measuring unit. In this video we use there phase digital meter connection to measure unit in three phase meter we use three current transformer t.. Than current transformer has two points s1 and s2 S...

Tags: Three phase kwh meter connection,three phase me...
