Pressure Electric Switch

Switch Electric Pressure - Square D by Schneider Electric 9013FSG2J24M4 Air-Pump Pressure Switch, NEMA 1, 40-60 psi Pressure Setting, 20-65 psi Cut-Out, 15-30 psi Adjustable Differential, Low-Pressure Cut-Off
Square D by Schneider Electric 9013FSG2J24M4 Air-Pump Pressure Switch, NEMA 1, 40-60 psi Pressure Setting, 20-65 psi Cut-Out, 15-30 psi Adjustable Differential, Low-Pressure Cut-Off

This Square D Pumptrol 9013FSG2J24M4 electromechanical pressure switch with 40-60 psi pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 1 enclosure has a 1/4" NPSF internal fluid connection and screw clamp terminals. The switch works with a 1.5 hp or less pump. The adjustable differential range is 15-30 psi and the cut-out range is 20-65 psi. The low-pressure cut-off (auto-start-off) operates at approximately 10 psig below the cut-in and will turn off the pump. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified. Square D Pumptrol pressure switches are manufactured by Schneider Electric.

  • Color: Original Version
  • Brand: Square D by Schneider Electric
  • ASIN: B000IJWSDA
  • UPC: 785901458685
  • Part No: 9013FSG2J24M4

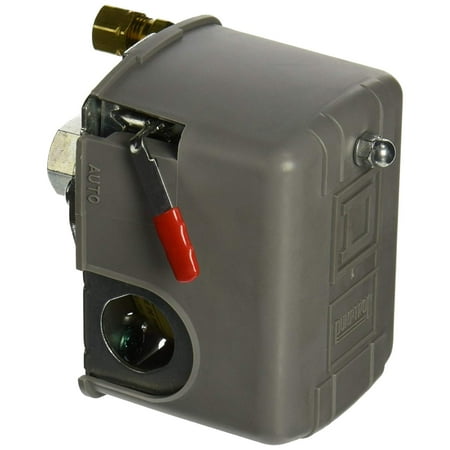

Switch Pressure Electric - Square D by Schneider Electric 9013FHG12J52M1X Air-Compressor Pressure Switch, 125 Psi Set Off, 30 Psi Fixed Differential, 1/4
Square D by Schneider Electric 9013FHG12J52M1X Air-Compressor Pressure Switch, 125 Psi Set Off, 30 Psi Fixed Differential, 1/4" Npsf Internal, 2-Way Release Valve, Auto/Off Cut-Out Lever

' Pressure Switch, Factory On/Off Setting 95/125 psi, Differential 30 psi, Range 40 to 150 psi, Port Type 1-Port 1/4 In. FNPS, Manual Switch Action Auto/Off, Contact Form DPST, Action Standard, Application Air Compressor, Unloader 1/4 In. Compression, NEMA Rating 1, Series 9013FHG, HP @ 1 Phase - 120V 1-1/2, HP @ 1 Phase - 240V 2, HP @ 3 Phase - 240V 3, HP @ 3 Phase - 480V 1, Temp. Range -22 Degrees to 257 Degrees F '

  • Brand: Square D by Schneider Electric
  • ASIN: B0078RUFJ4
  • UPC: 785901049555
  • Part No: 9013FHG12J52M1X
Pressure Electric Switch - Square D by Schneider Electric 9013FSG2J21 Air-Pump Pressure Switch, NEMA 1, 30-50 psi Pressure Setting, 20-65 psi Cut-Out, 15-30 psi Adjustable Differential
Square D by Schneider Electric 9013FSG2J21 Air-Pump Pressure Switch, NEMA 1, 30-50 psi Pressure Setting, 20-65 psi Cut-Out, 15-30 psi Adjustable Differential

This Square D Pumptrol 9013FSG2J21 electromechanical pressure switch with 30-50 psi pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 1 enclosure has a 1/4" NPSF internal fluid connection and screw clamp terminals. The switch works with a 1.5 hp or less pump. The adjustable differential range is 15-30 psi and the cut-out range is 20-65 psi. The cover is black. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified. Square D Pumptrol pressure switches are manufactured by Schneider Electric.

  • Brand: Square D by Schneider Electric
  • ASIN: B000IJSWIA
  • UPC: 785901077213
  • Part No: 9013FSG2J21
Switch Electric Pressure - Square D by Schneider Electric 9013FHG12J55M1 Air-Compressor Pressure Switch, 150 psi Set Off, 30 psi Fixed Differential, 1/4
Square D by Schneider Electric 9013FHG12J55M1 Air-Compressor Pressure Switch, 150 psi Set Off, 30 psi Fixed Differential, 1/4" NPSF Internal, Auto/Off Cut-Out Lever

This Square D Pumptrol 9013FHG12J55M1 air-compressor pressure switch controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 150 psi. The switch has a 1/4" NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 hp or less. The non-adjustable differential is 30 psi, and the adjustable cut-out range is 70-150 psi. The switch is diaphragm actuated and has a fixed differential. The threshold, or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections, and two 2-pole NC contacts open on rising pressure. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratories (UL) Listed and Canadian Standards Organization (CSA) certified. The maintained manual cut-out lever has auto and off positions. Square D Pumptrol pressure switches are manufactured by Schneider Electric.

  • Brand: Square D by Schneider Electric
  • ASIN: B013WXVI0C
  • UPC: 785901140221
  • Part No: 9013FHG12J55M1
Pressure Switch Electric - Square D by Schneider Electric 9013FSG52J33P Air-Pump Pressure Switch, NEMA 1, 50-70 psi Pressure Setting, 25-80 psi Cut-Out, 20-30 psi Adjustable Differential, Pulsation Plug
Square D by Schneider Electric 9013FSG52J33P Air-Pump Pressure Switch, NEMA 1, 50-70 psi Pressure Setting, 25-80 psi Cut-Out, 20-30 psi Adjustable Differential, Pulsation Plug

This Square D Pumptrol 9013FSG52J33P electromechanical pressure switch with 50-70 psi pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 1 enclosure has a 1/4" NPSF internal fluid connection and screw clamp terminals. The switch works with a 1.5 hp or less pump. The adjustable differential range is 20-30 psi and the cut-out range is 25-80 psi. This switch includes a copper pulsation plug. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified. Square D Pumptrol pressure switches are manufactured by Schneider Electric.

  • Brand: Square D by Schneider Electric
  • ASIN: B013WY2NH8
  • UPC: 785901105992
  • Part No: 9013FSG52J33P
Pressure Electric Switch - Square D by Schneider Electric 9013GHG2J63 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4
Square D by Schneider Electric 9013GHG2J63 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 140-175 psi Points

This Square D Pumptrol 9013GHG2J63 Square D Pumptrol pressure switch has a 200/250-psi pressure sensor size for direct control of electrically controlled air compressors and water pumps. This diaphragm-actuated switch has contacts that open on rising pressure, enabling an adjustable activation range of 145-175 psi operating points. The switching points set with an adjustable screw nut and are drift proof. The National Electrical Manufacturers Association (NEMA) 1 enclosure has a rugged polyphenylene oxide and steel housing for long life and includes a flange with a 1/4" NPSF internal fluid connection. The switch must be mounted in the vertical position to maintain its enclosure rating. Three knockouts are provided for wiring flexibility. The mechanical components are covered with a Chromate 3 plating for corrosion resistance in compliance with Restriction of Hazardous Substances (RoHS). The pressure connection has a 1/4" NPT male pipe thread.

  • Brand: Square D by Schneider Electric
  • ASIN: B007IAA15E
  • UPC: 785901559702
  • Part No: 9013GHG2J63
Switch Pressure Electric - Schneider Electric 9998PC241 Replacement Contact Kit for 9013FSG
Schneider Electric 9998PC241 Replacement Contact Kit for 9013FSG

Replacement contact kit for 9013FSG. For use with all 9013FSG water pump switches and select 9013FHG air compressor switches.

  • Brand: Square D by Schneider Electric
  • ASIN: B006H3VZIA
  • UPC: 785901523000
  • Part No: 9998-PC241
Pressure Electric Switch - Square D by Schneider Electric 9013FSG52J25M4 Air-Pump Pressure Switch, NEMA 1, 60-80 psi Pressure Setting, 25-80 psi Cut-Out, 20-30 psi Adjustable Differential, Low-Pressure Cut-Off
Square D by Schneider Electric 9013FSG52J25M4 Air-Pump Pressure Switch, NEMA 1, 60-80 psi Pressure Setting, 25-80 psi Cut-Out, 20-30 psi Adjustable Differential, Low-Pressure Cut-Off

This Square D Pumptrol 9013FSG52J25M4 electromechanical pressure switch with 60-80 psi pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 1 enclosure has a 1/4" NPSF internal fluid connection and screw clamp terminals. The switch works with a 1.5 hp or less pump. The adjustable differential range is 20-30 psi and the cut-out range is 25-80 psi. The low-pressure cut-off (auto-start-off) operates at approximately 10 psig below the cut-in and will turn off the pump. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified. Square D Pumptrol pressure switches are manufactured by Schneider Electric.

  • Brand: Square D by Schneider Electric
  • ASIN: B013WXWD5Q
  • UPC: 785901168676
  • Part No: 9013FSG52J25M4
 - Superior Electric LF10-4H-HP Pressure Switch for Hitachi compressors Four Ports
Superior Electric LF10-4H-HP Pressure Switch for Hitachi compressors Four Ports

Pressure Electric Switch

  • Model: LF10-4H
 - HURRISE Automatic Water Pump Pressure Controller Electric Electronic Switch Control
HURRISE Automatic Water Pump Pressure Controller Electric Electronic Switch Control

Pressure Electric Switch

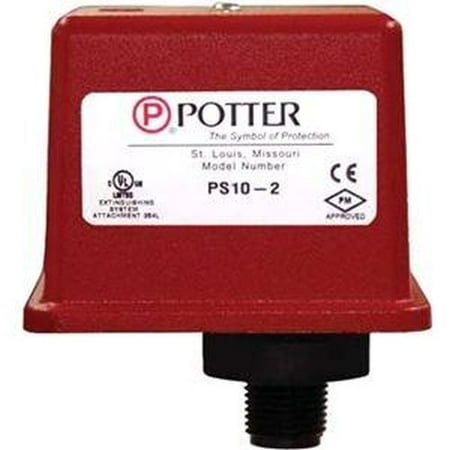

 - Potter Electric Signal PS101 Waterflow Pressure Switch Psi 4-20 1 Contact
Potter Electric Signal PS101 Waterflow Pressure Switch Psi 4-20 1 Contact

Pressure Electric Switch

  • Model: PS101

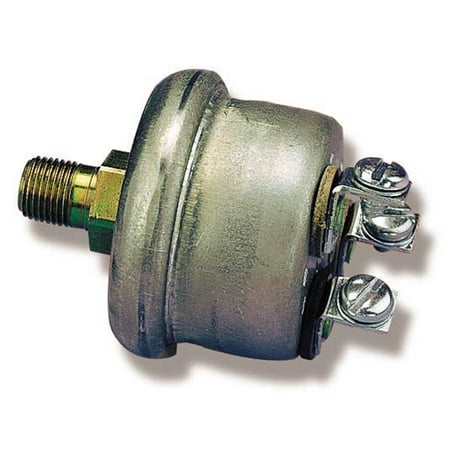

 - Holley 12-810 Electric Fuel Pump Safety Pressure Switch
Holley 12-810 Electric Fuel Pump Safety Pressure Switch

Pressure Electric Switch

  • Model: HOL12-810
  • Color: Multicolor

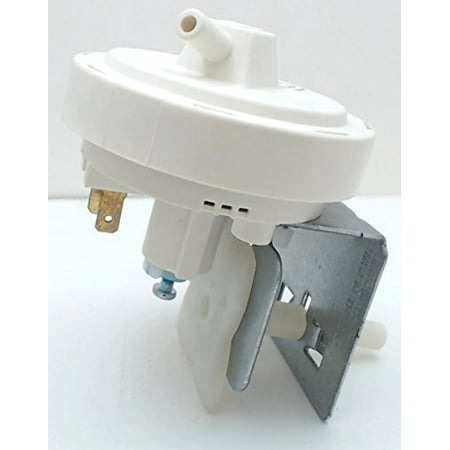

 - General Electric WH12X10076 Pressure Switch
General Electric WH12X10076 Pressure Switch

Pressure Electric Switch

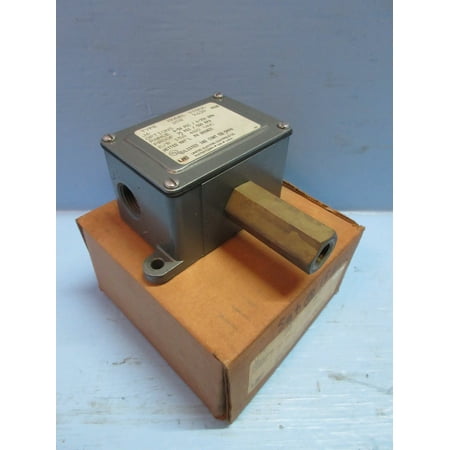

 - New United Electric J6-258 Pressure Switch Range 0-50 PSI Type J6 Model 258 NIB
New United Electric J6-258 Pressure Switch Range 0-50 PSI Type J6 Model 258 NIB

Pressure Electric Switch

  • Model: J6 258
